This hard phone is another ATA (analog telephone
adaptor). It enables you to connect your POTS (plain old
telephone system) phones to the Internet. Think of it as a phone
jack for VoIP. It has one ethernet port and two RJ11 phone
jacks. This is one of the most feature rich and easy to use ATA
that we have tested. Out of the box, it is configured for DHCP.
This means that it gets its IP address from your DHCP server
automatically. Full documentation can be found at
NOTE: We have seen
instances where installing the SPA-2002 behind a firewall which
blocks ICMP packets causes problems with registration. Try
turning off any ICMP blocking on your firewall.
You must first determine what IP address it received.
To do this, you need to pick up the phone attached to the Line 1
jack and dial:
**** (four asterisks)
and you will be told the IP address of your device
Go to any browser equipped computer on your network and
enter the address:
(where <IP ADDRESS> is replaced by the address that was given to
you in STEP 1).
Click on the "Admin Login" button near
the top right side of the screen, then click on the
"Line 1" tab.

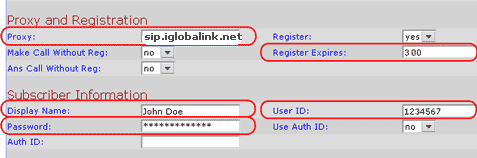

You need to modify only a few parameters from the
factory default. They are listed here:
Enter your full name, this will show up as part of
Enter the phone number you chose when you signed up for
Enter the password that you chose when you signed up
for Globalink service.
Click on the "Submit All Changes" button at the bottom of the
Change the “Preferred Codec” to G729a . Also change the
“Use Pref Codec Only” to Yes. You can do this for both Line 1
and Line 2 (i.e. if you are going to use Line 2).
You can now make calls without dialing any access codes. Please
just dial country code and then the number.
